Practical and real-world examples of queries for identifying malware infrastructure. The primary tooling used is Censys.io.

  • Redline Stealer
  • Qakbot
  • NJRat
  • Remcos
  • BianLian Go Trojan
  • XTreme RAT
  • SuperShell Botnet

Qakbot Command and Control Servers

Censys Link

  • Empty Banner Produces Unique Hash

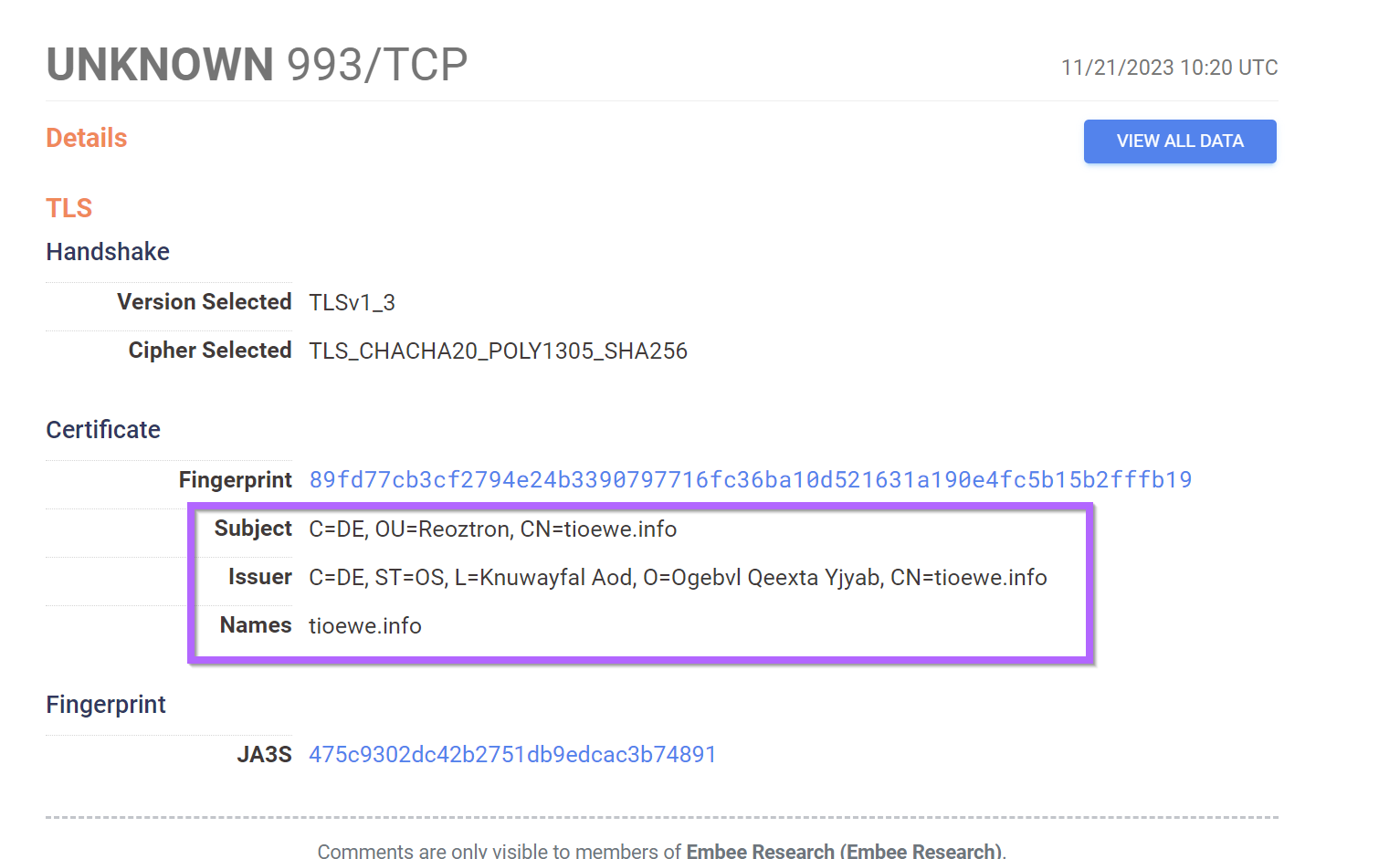

  • Particular Structure to TLS certificates
  • Qakbot server typically on port 443,993 or 995
  • Server name all lower case letters with no subdomain
  • No identified operating system on servers
  • Same ja3s across malicious servers.
services:(banner_hashes="sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855" and tls.certificates.leaf_data.subject_dn:/C=[^,]+, OU=[^,]+, CN=[^,]+/ and tls.certificates.leaf_data.issuer_dn:/C=[^,]+, ST=[^,]+, L=[^,]+, O=[^,]+, CN=[^,]+/ and (port:443 or port:993 or port:995)) and services.tls.certificates.leaf_data.names:/[a-z]{3,15}.[a-z]{2,5}/ and not operating_system.product:* and services.tls.ja3s: 475c9302dc42b2751db9edcac3b74891

BianLian GO Trojan

Censys Link

  • Empty Banner on Main Service

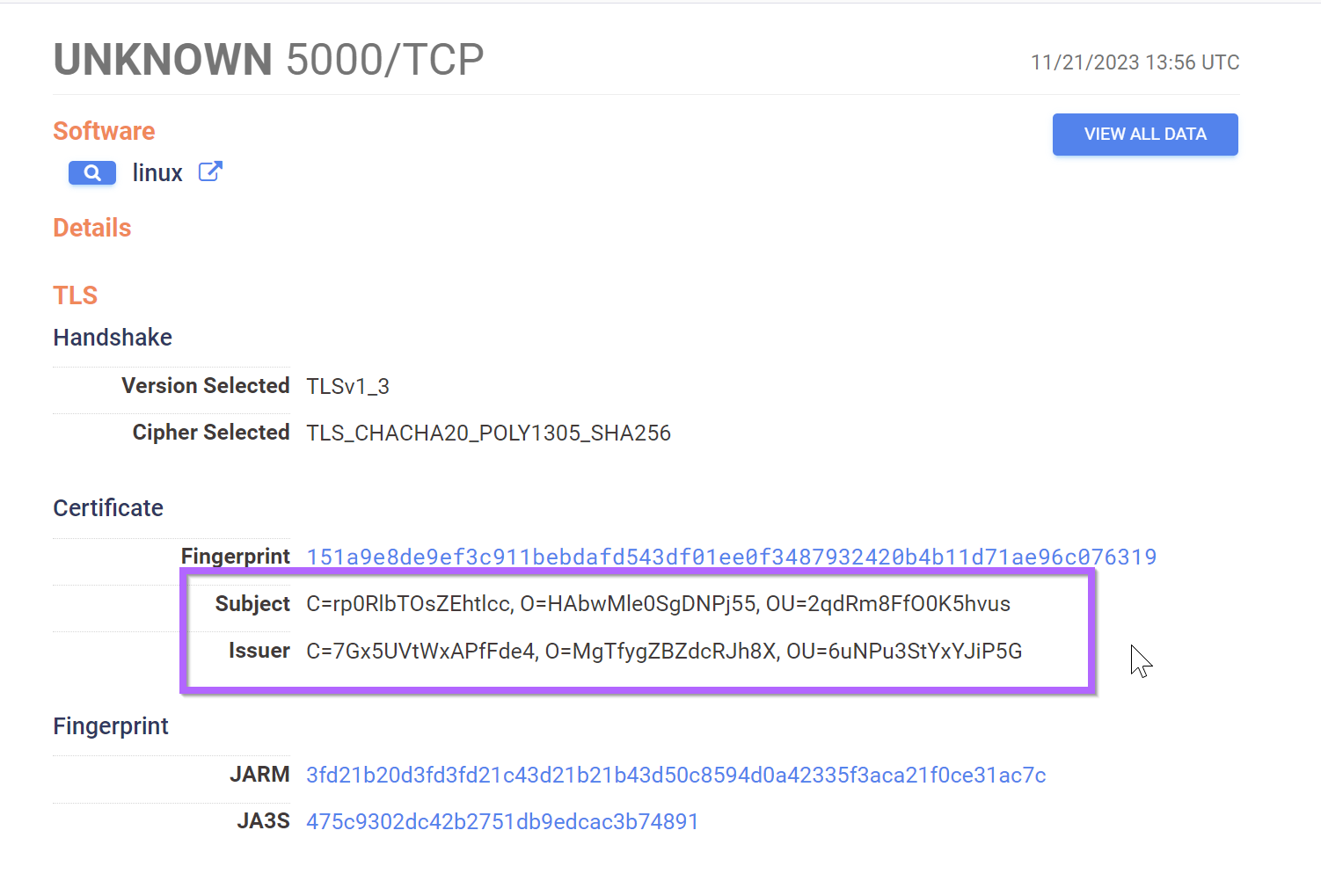

  • Very particular structure to certificate names (both Issuer and Subject) eg C=zHNWYSaBumxjPKPY, O=KcUnN1CdTgEOxr6h, OU=FtVXN2EyNbwlXUP8
  • Service always unidentifed, presumably due to lack of headers.
services:(banner_hashes="sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855" and tls.certificates.leaf_data.subject_dn=/C=[^,]{10,20}, O=[^,]{10,20}, OU=[^,]{10,20}/ and tls.certificates.leaf_data.issuer_dn=/C=[^,]{10,20}, O=[^,]{10,20}, OU=[^,]{10,20}/ and service_name:UNKNOWN)

NJRat/Xworm Botnet Servers

Censys Link

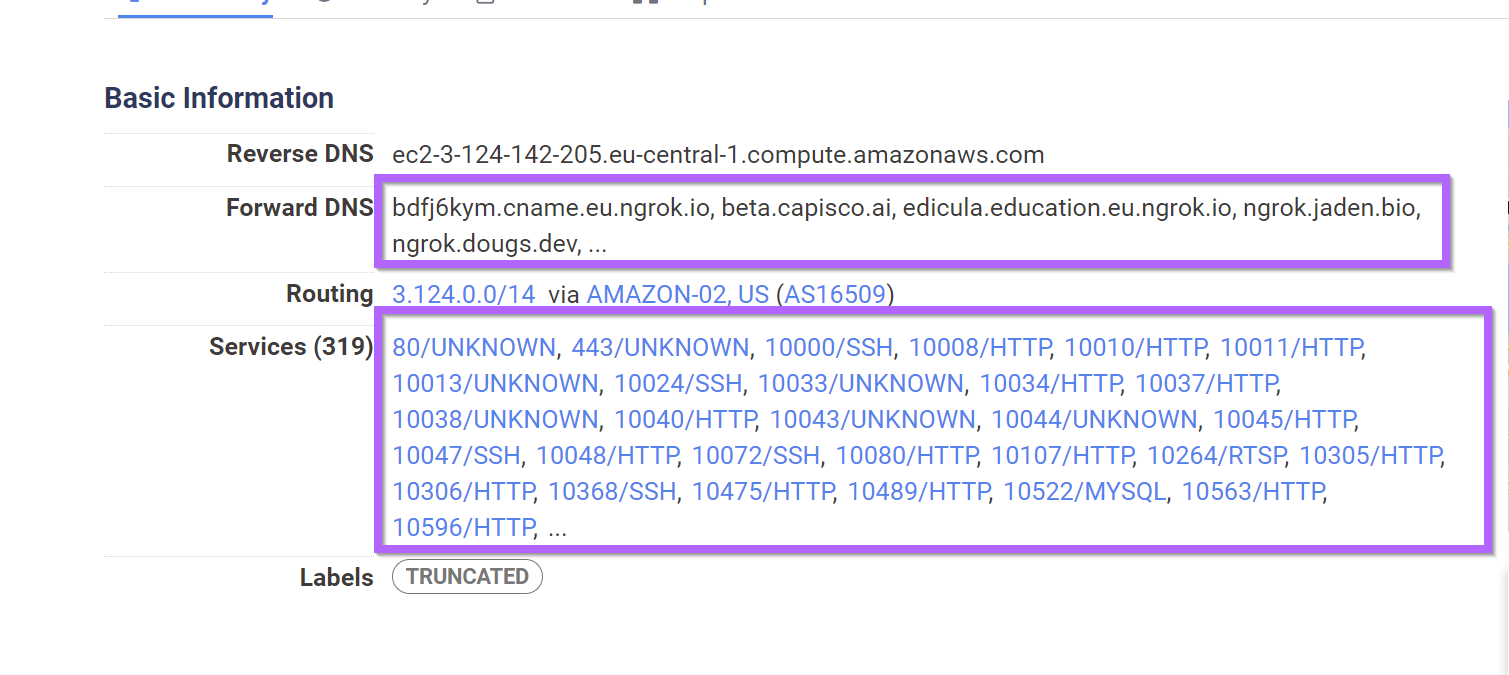

  • Extremely high number of running services (typically 200-400)
  • At least one dns.name pointing to an ngrok address
  • Most ports running GStreamer Service
service_count:[200 to 2000] and dns.names:ngrok and services.banner:GStreamer

Redline Stealer C2

Censys Link

  • Initial Redline stealer c2 on 77.91.124[.]86:19084
  • Running 3 services, DNS and 2 Valve Related services.
  • Reverse DNS pointing to a Russian VPN Service
  • Searching on DNS Forwarding + .ru dns + Valve Service + 3 total services results in 18 servers with 3 marked as known malware.
  • Other 15 results are "clean", but may be reserved for later malicious use.
services.dns.server_type="FORWARDING" and dns.reverse_dns.names:*.ru and services.extended_service_name="VALVE" and service_count:3

Remcos C2 Servers, Overlap with other RAT Families

Censys Link

  • Empty Banner Produces Unique-ish hash value

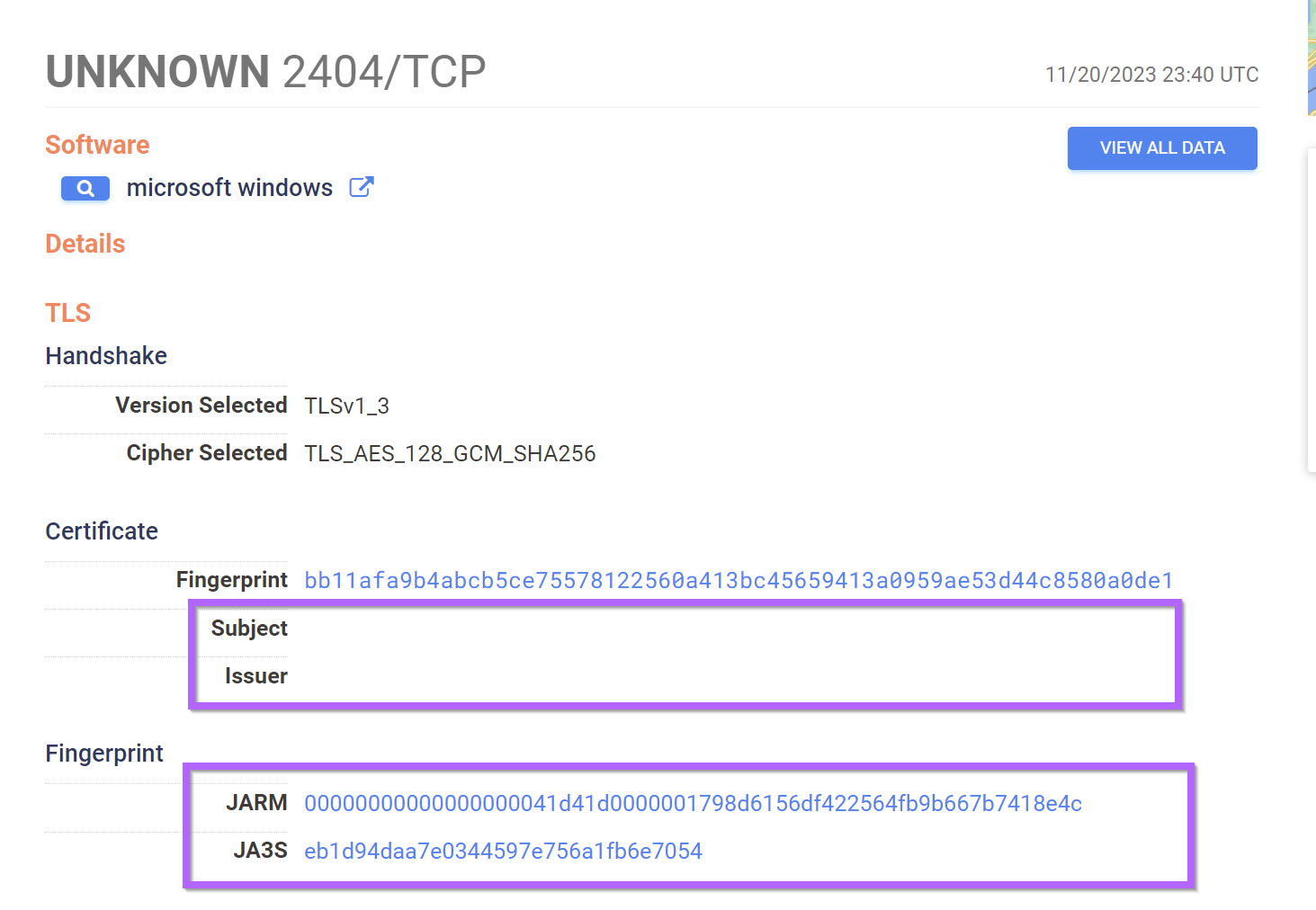

  • Same Jarm fingerprint across services
  • Same Ja3s
  • Almost always on port 2404
services:(banner_hashes="sha256:e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855" and jarm.fingerprint="00000000000000000041d41d0000001798d6156df422564fb9b667b7418e4c" and port:2404 and tls.ja3s: eb1d94daa7e0344597e756a1fb6e7054)

XTreme RAT

Censys Link

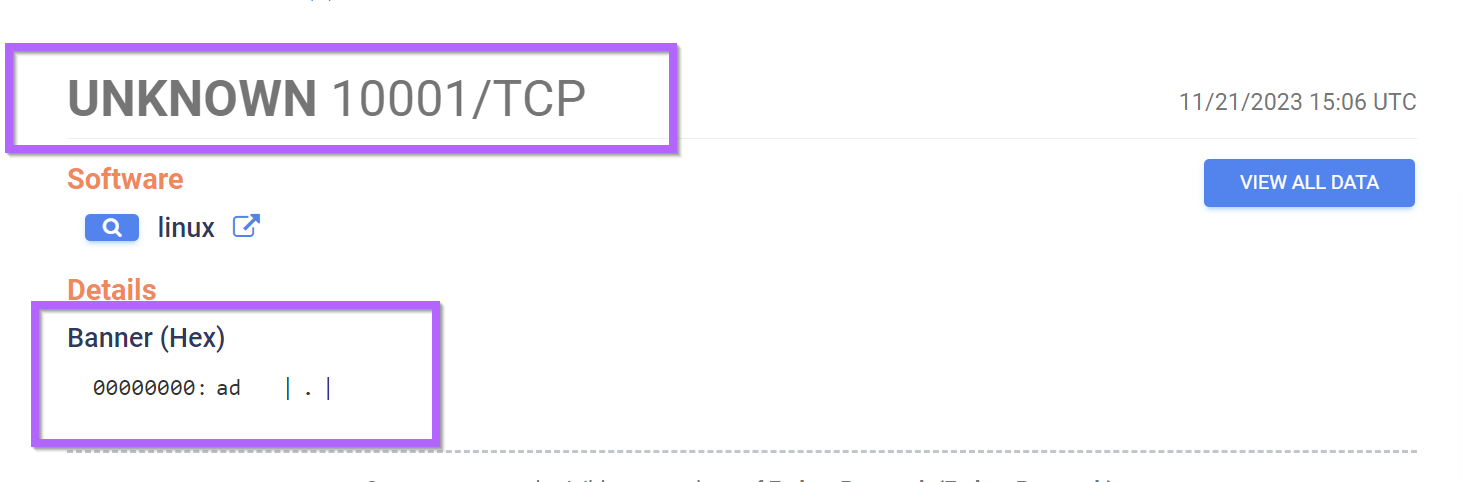

  • Banner is a single 0xAD character
  • Always running on port 10001
services.banner_hashes="sha256:22adaf058a2cb668b15cb4c1f30e7cc720bbe38c146544169db35fbf630389c4" and services.port:10001

SuperShell BotNet

Censys Link

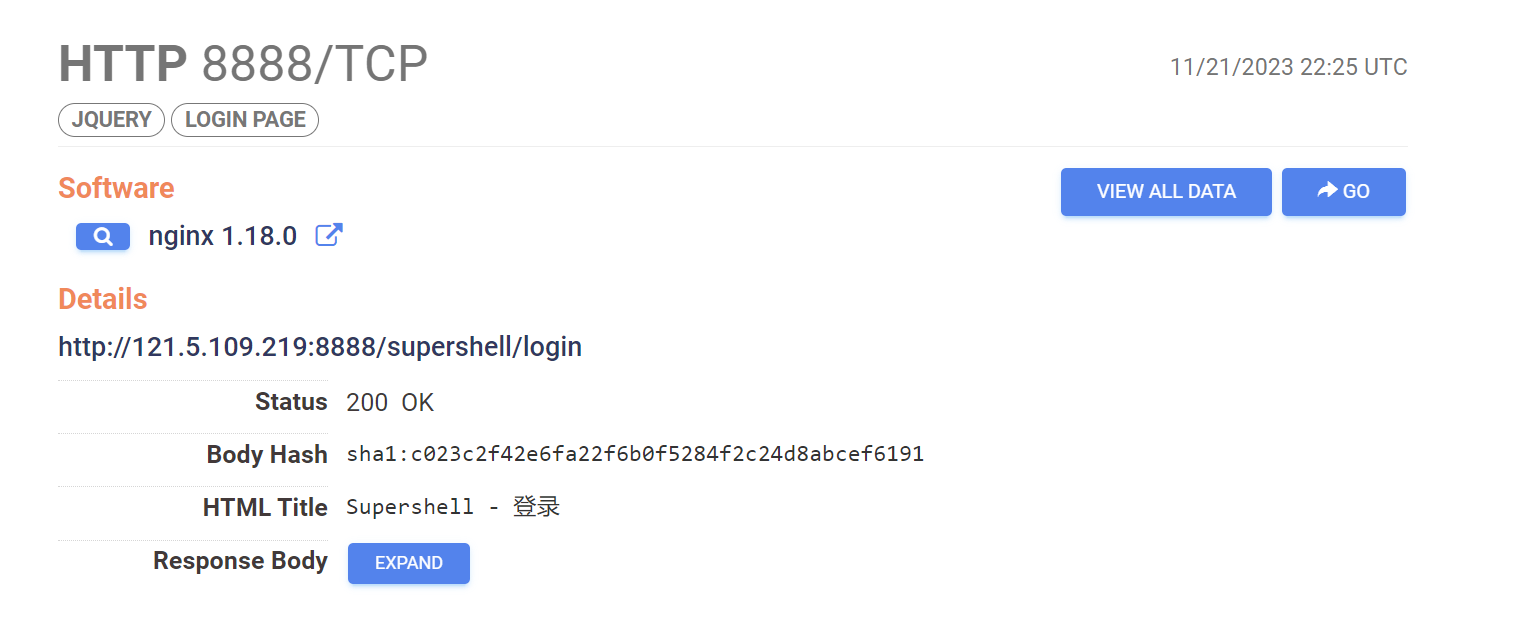

  • Presence of "Supershell" in html title
  • re-used favicon across panels
services.http.response.html_title:"Supershell" or services.http.response.favicons.md5_hash="cb183a53ebfc2b61b3968c9d4aa4b14a"
